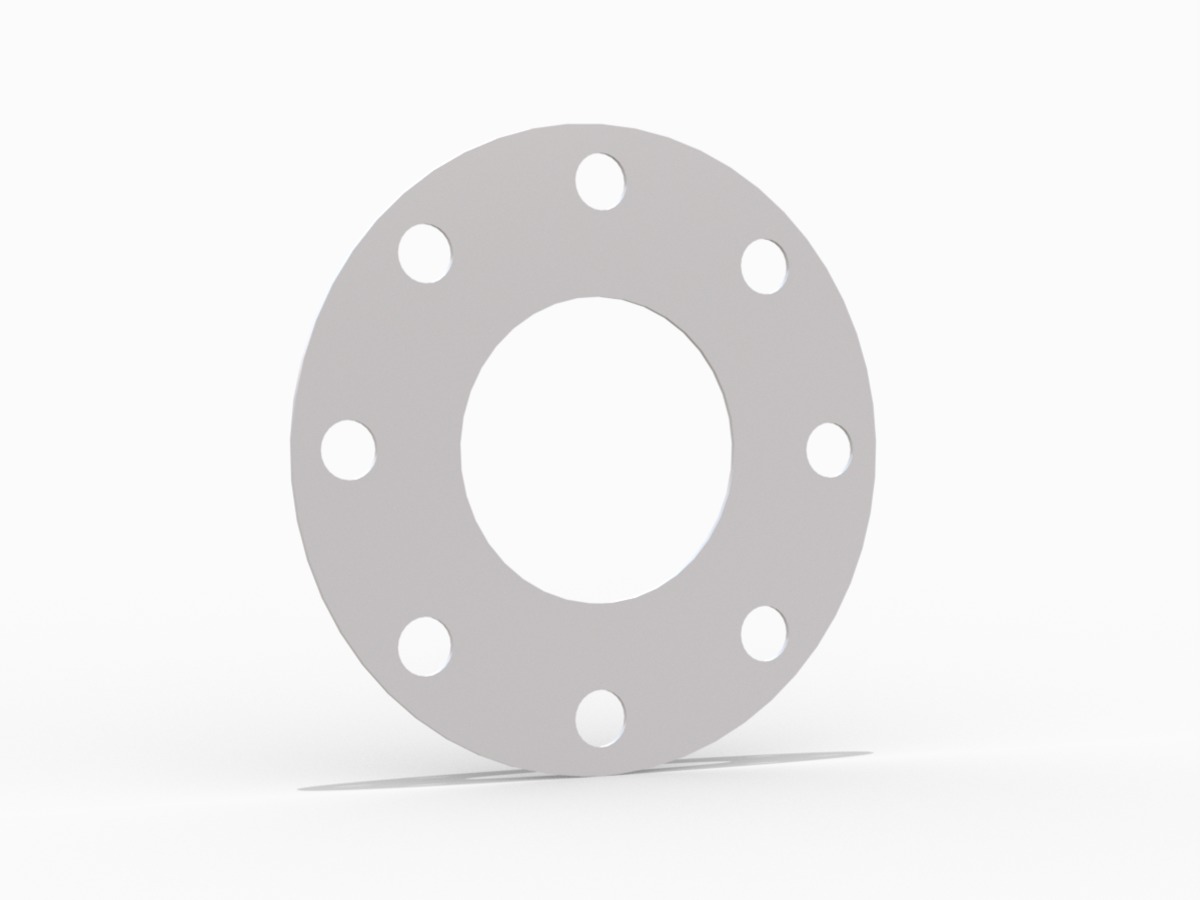

GYLON® Style 3503 Full Face Gasket, PTFE with Barium Sulfate, 3 1/2 Inch ASME B16.5 Class 150, 0.063 Inch Thick, 8 Bolt Holes Clean and Bag for O2 Service

GYLON® Style 3503 Full Face Gasket, PTFE with Barium Sulfate, 3 1/2 Inch ASME B16.5 Class 150, 0.063 Inch Thick, 8 Bolt Holes Clean and Bag for O2 Service

37135-4195

Shipping Weight: 0.153 lbs
Gasket Type: Full Face
Style/Model: Style 3503
Pipe Standard and Class: ASME B16.5 Class 150
Compliances/Standards: ADI/TSE Free, FDA Compliant, Oxygen Service, REACH Compliant, RoHS Compliant
Nominal Pipe Size Fraction (Inch): 3 1/2
Thickness (inch): 0.063
Composition: PTFE with Barium Sulfate
Temperature Range (F): -450°F - 500°F
Temperature Range (C): -268°C - 260°C
Pressure Max (psi): 1200
Pressure Max (bar): 83
Bolt Circle Diameter (Inch): 7.000
Bolt Circle Diameter (mm): 177.80
Bolt Hole Diameter (Inch): 0.750
Bolt Hole Diameter (mm): 19.05
Bolt Hole Quantity: 8
Brand: GYLON®
Branding: Unbranded
Color: Off-White
Compliances: FDA Compliant, REACH Compliant, RoHS Compliant, ADI/TSE Free, Oxygen Service
Flange Standards/Pressure Class: ASME B16.5 Class 150
Min Temperature (C): -268
Min Temperature (F): -450
Nominal Pipe Size (inch): 3.500
Nominal Pipe Size DN (mm): 90.0
Pressure Class: 150
Primary Nominal Thickness: 5/8
Rubber Material: PTFE
Rubber Material Abbreviation: PTFE
Sort Priority: 230
UPC Code: 191074048347
Primary Dimensional Unit of Measure: Imperial
Thickness (mm): 1.60
Inside Diameter (Inch): 4
Inside Diameter (mm): 101.60
Outside Diameter (inch): 8.500
Outside Diameter (mm): 215.90
