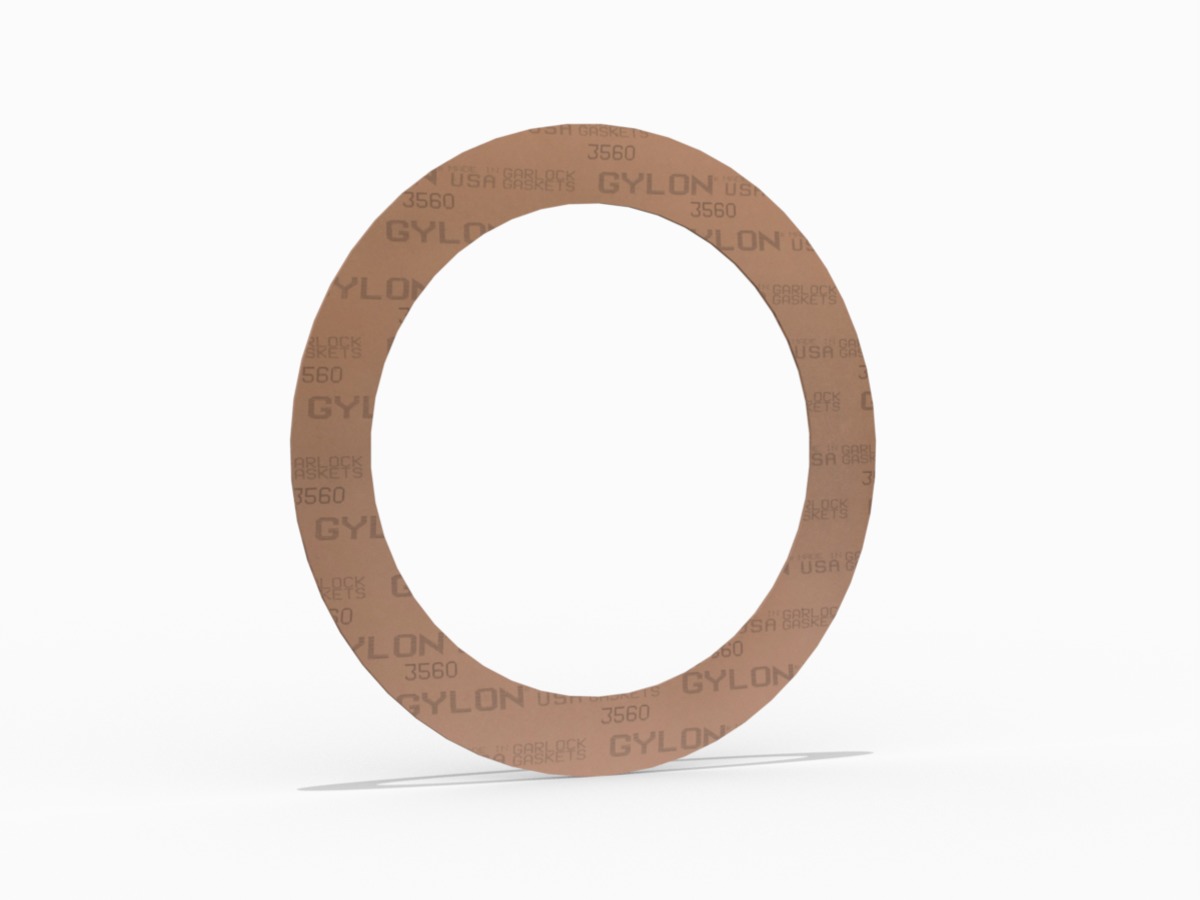

GYLON® Style 3560 Ring Gasket, PTFE with Silica and Perforated 316L SS Insert, 1 Inch ASME B16.5 Class 150, 0.125 Inch Thick
37356-1101
- Shipping Weight: 0.056 lbs
- Gasket Type: Ring
- Style/Model: Style 3560
- Pipe Standard and Class: ASME B16.5 Class 150
- Compliances/Standards: REACH Compliant, RoHS Compliant
- Nominal Pipe Size Fraction (Inch): 1
- Thickness (inch): 0.125
- Composition: PTFE with Silica and Perforated 316L SS Insert
- Temperature Range (F): -150°F - 500°F
- Temperature Range (C): -101°C - 260°C
- Pressure Max (psi): 2500
- Pressure Max (bar): 172
- Brand: GYLON®
- Color: Fawn
- Compliances: REACH Compliant, RoHS Compliant
- Flange Standards/Pressure Class: ASME B16.5 Class 150
- Min Temperature (C): -101
- Min Temperature (F): -150
- Nominal Pipe Size (inch): 1.000
- Nominal Pipe Size DN (mm): 25.0
- Pressure Class: 150
- Primary Nominal Thickness: 1/8
- Rubber Material: PTFE
- Rubber Material Abbreviation: PTFE
- Sort Priority: 290
- UPC Code: 191074153867
- Primary Dimensional Unit of Measure: Imperial
- Branding: Branded
- Thickness (mm): 3.18
- Inside Diameter (Inch): 1.313
- Inside Diameter (mm): 33.35
- Outside Diameter (inch): 2.625
- Outside Diameter (mm): 66.68
GYLON® Style HP 3560 is high performance, silica filled PTFE gasketing material that contains perforated 316L stainless steel insert for improved pressure resistance (can withstand up to 2,500 PSI).
- de280494-4e27-4ab9-ab25-a0fab6219114(Certifications & Compliances)
- c3c6c1fe-eed5-4b16-be5d-4dd4d10c2f4f(Technical Documents)
- 9c8b5684-a50c-45c2-ac93-b7840812fbd5(Certifications & Compliances)
- 70a3c3f7-c41c-4d43-bdc1-b71e0959b1c0(Installation Documents)
- 6e9bacfa-f954-4909-b9ba-655da7bacd08(Technical Documents)
- 608eda38-22c9-4e21-afd0-128f67608760(Technical Documents)
- 37f22e34-775c-4b06-91f9-9c2a16ff0340(Data Sheet)
- 0b47fafe-ac86-4f71-9562-0711d2968e43(Technical Documents)
- c9f87940-6a7d-4b40-92e9-ba8e41494599(Data Sheet)
- Übersicht
Features and Benefits:
- Tight seal
- Perforated stainless steel core increases resistance to pressure fluctuations and thermal cycling
- GYLON® offers superior cold flow and creep resistance, eliminating the need for frequent retorquing
- Chemical resistance
- Seals aggressive chemicals in hostile environments where safety or blowout resistance is crucial*
- Will not support flame
- Will not support bacterial growth
Media Use:
- Solvents
- Hydrocarbons
- Water
- Steam
- Chlorine
- Cryogenics
Industries Served:
- Chemical Processing
- Food and Beverage
- Mining
- Pharmaceutical
- Primary Metals
- Water and Wastewater
- Pulp and Paper
- Power Generation
- Oil and Gas
- Nuclear
