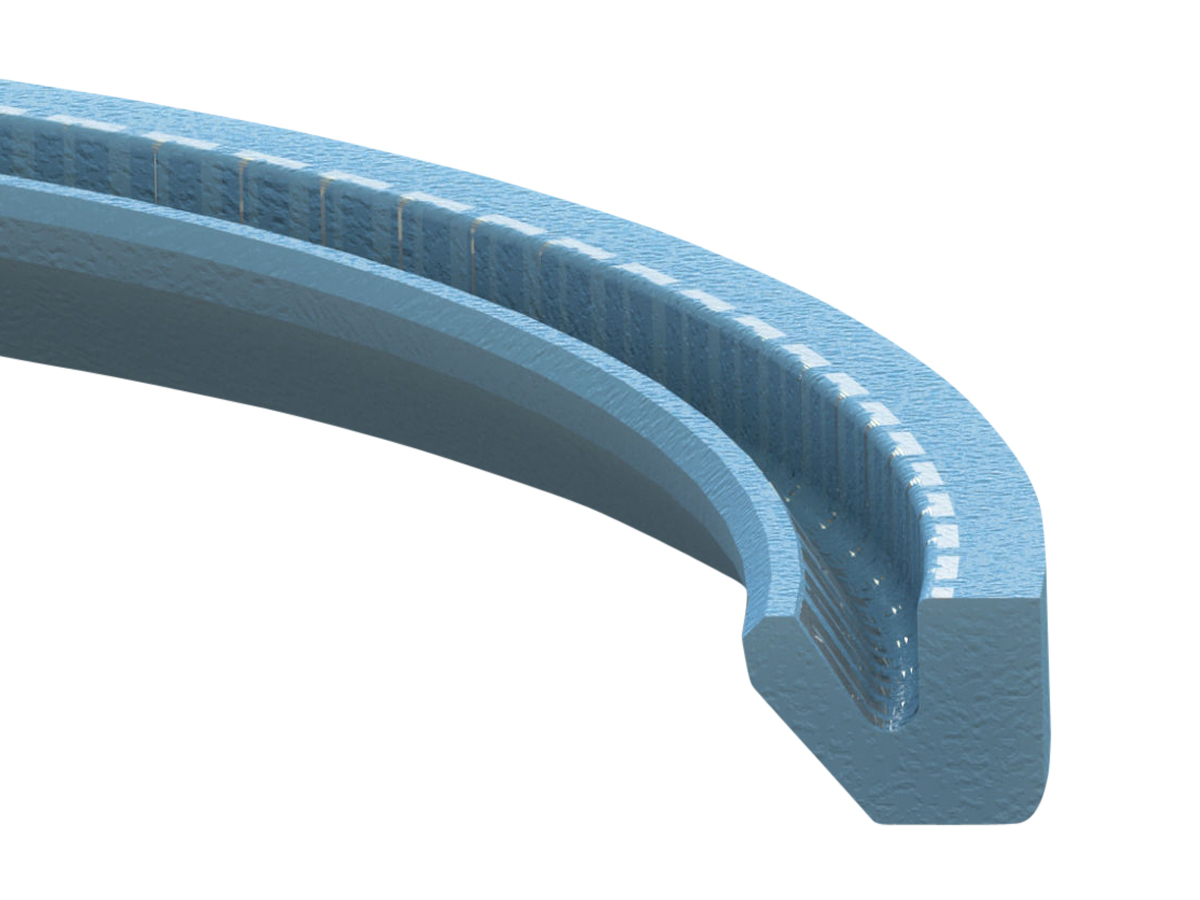

Garlock KLOZURE® Model 21 Oil Seal, Split, Silicone, 7.250 in Shaft, 8.500 in Bore, 0.750 in Width

25002-3523
Garlock KLOZURE® Model 21 Oil Seal, Split, Silicone, 7.250 in Shaft, 8.500 in Bore, 0.750 in Width
  • Shipping Weight: 0.56 lbs
  • Brand: KLOZURE®
  • Style/Model: Model 21
  • Shaft Size (inch): 7.250
  • Shaft Size (mm): 184.15
  • Bore Size (inch): 8.500
  • Bore Size (mm): 215.90
  • Width (inch): 0.750
  • Width (mm): 19.05
  • Lip Material: Silicone
  • Split or Solid: Split
  • Case Material: None
  • Configuration Type (Seals): Single Lip
  • Lip Base Material Abbreviation: VMQ
  • Lip Base Material Name: Silicone
  • Max Temperature (C): 177
  • Max Temperature (F): 350
  • Min Temperature (C): -59
  • Min Temperature (F): -75
  • Spacers Exist: No
  • Spring Material: 302SS
  • Standard/Special: Standard
  • UPC Code: 717744048266
  • Primary Dimensional Unit of Measure: Imperial
  • Pressure Max (psi): Ambient
  • Pressure Max (bar): Ambient
  • Max Shaft Surface Speed (meter/sec): 5.1
  • Max Shaft Surface Speed (feet/min): 1,000

Model 21 is a general purpose split seal designed for low-speed service.

Cover plate required. Available in all MILL-RIGHT™ materials.

  • Overview

Features and Benefits:

  • Low-speed service seal
  • Cover plate required
  • Wear resistant and low friction

Typical Applications:

  • Low-Speed Service
  • General Purpose Split Oil Seal
