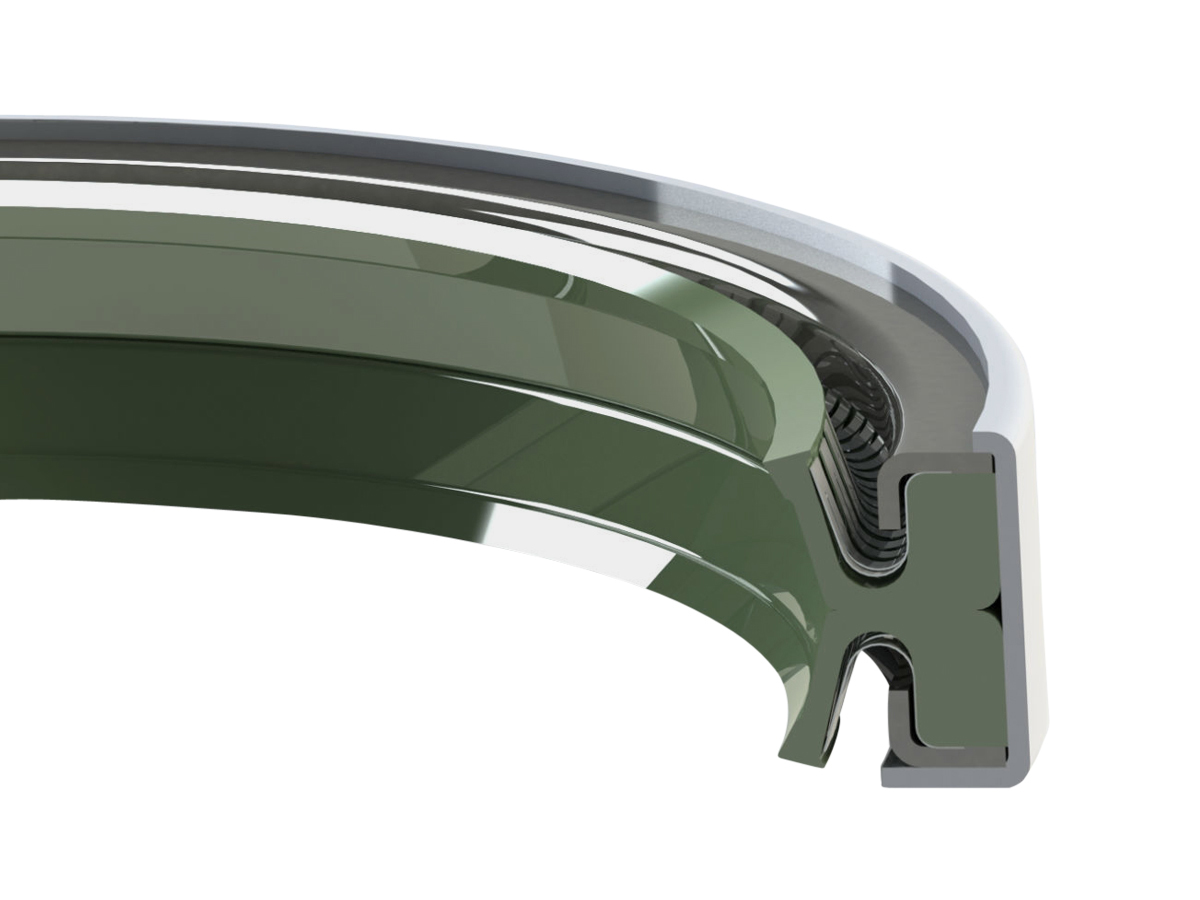

Model 53R2 Oil Seal, MILL-RIGHT V, 4.500 inch Shaft, 5.500 inch Bore, 0.969 inch Width, Dual Opposed Lips
23708-6685
- Shipping Weight: 0.99 lbs
- Style/Model: Model 53R2
- Shaft Size (inch): 4.500
- Shaft Size (mm): 114.30
- Bore Size (inch): 5.500
- Bore Size (mm): 139.70
- Width (inch): 0.969
- Width (mm): 24.61
- Lip Material: MILL-RIGHT V
- Split or Solid: Solid
- Case Material: CRS
- Configuration Type (Seals): Dual Opposed Lips
- ADI/TSE Free: false
- API 589 Compliant: false
- API607Compliant: false
- API622Compliant: false
- DFARS Compliant: false
- Fire Safe API 6FB: false
- KTW Compliant: false
- Lip Base Material Abbreviation: FKM
- Lip Base Material Name: Fluoroelastomer
- Max Shaft Surface Speed (feet/min): 1,000
- Max Shaft Surface Speed (meter/sec): 5.1
- Max Temperature (C): 204
- Max Temperature (F): 400
- Min Temperature (C): -30
- Min Temperature (F): -22
- Misalignment Tolerance (inch): 0.010 in @ 500 ft/min; 0.005 in @ 1,000 ft/min
- Misalignment Tolerance (mm): 0.25 mm @ 2.5 m/s; 0.13 mm @ 5.1 m/s
- NSF® 61 Certified: false
- Pressure Max (bar): 0.48
- Pressure Max (psi): 7
- Primary Dimensional Unit of Measure: Imperial
- REACH Compliant: false
- RoHS Compliant: false
- Spacers Exist: false
- Spring Material: 302SS
- Standard/Special: Standard
- UPC Code: 717744608996
- USDA Approved: false
- USP VI 661 Compliant: false
- USP VI 87 Compliant: false
- USP VI 88 Compliant: false
