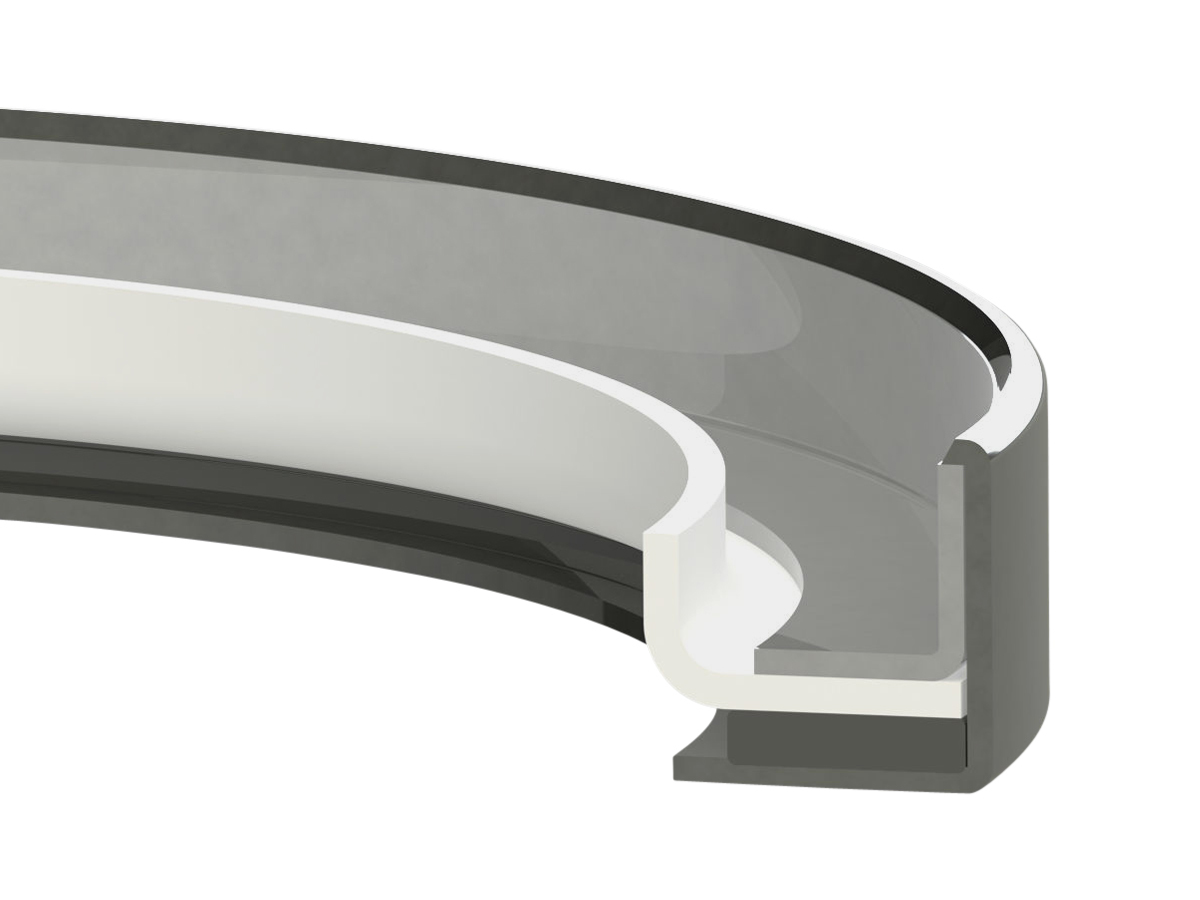

Model 61 Oil Seal, FDA Compliant GYLON, 1.969 inch Shaft, 2.756 inch Bore, 0.394 inch Width

24125-1156
Model 61 Oil Seal, FDA Compliant GYLON, 1.969 inch Shaft, 2.756 inch Bore, 0.394 inch Width
  • Shipping Weight: 0.09 lbs
  • Style/Model: Model 61
  • Shaft Size (inch): 1.969
  • Shaft Size (mm): 50.01
  • Bore Size (inch): 2.756
  • Compliances: FDA Compliant
  • Bore Size (mm): 70.00
  • Width (inch): 0.394
  • Width (mm): 10.01
  • Lip Material: FDA Compliant GYLON
  • Split or Solid: Solid
  • Case Material: 316SS
  • Configuration Type (Seals): Single Lip
  • Compliances/Standards: FDA Compliant
  • ADI/TSE Free: false
  • API 589 Compliant: false
  • API607Compliant: false
  • API622Compliant: false
  • DFARS Compliant: false
  • FDA Compliant: true
  • Fire Safe API 6FB: false
  • KTW Compliant: false
  • Lip Base Material Abbreviation: PTFE
  • Lip Base Material Name: PTFE
  • Max Temperature (C): 204
  • Max Temperature (F): 400
  • Misalignment Tolerance (inch): 0.005 in @ 2,000 ft/min
  • Misalignment Tolerance (mm): 0.13 mm @ 10.2 m/s
  • NSF® 61 Certified: false
  • REACH Compliant: false
  • RoHS Compliant: false
  • Spacers Exist: false
  • Standard/Special: Standard
  • UPC Code: 717744777821
  • USDA Approved: false
  • USP VI 661 Compliant: false
  • USP VI 87 Compliant: false
  • USP VI 88 Compliant: false
  • Primary Dimensional Unit of Measure: Imperial
  • Pressure Max (psi): 150
  • Pressure Max (bar): 10.34
  • Max Shaft Surface Speed (meter/sec): 10.2
  • Max Shaft Surface Speed (feet/min): 2,000

The Model 61 is an assembled seal for high-pressure applications. Its GYLON® element offers excellent chemical resistance. Dry running up to 800 fpm (3.5 m/s). Model 61 is the perfect product when pressure, or chemicals are present. Using many different blends of GYLON® material, the Model 61 can handle some of the harshest chemicals found in industry. Garlock produces GYLON® in a process that has been specially developed.

  • Vue D'Ensemble

Features and Benefits:

  • Assembled seal for high-pressure  and in extreme vacuum applications
  • GYLON® element offers excellent chemical resistance
  • Useable in food and pharma applications (FDA)
  • Good to excellent dry running capability. Dry running up to 800 fpm (3.5 m/s).
  • Wear resistant and low friction

Typical Applications:

  • Aggressive chemicals
  • FDA
