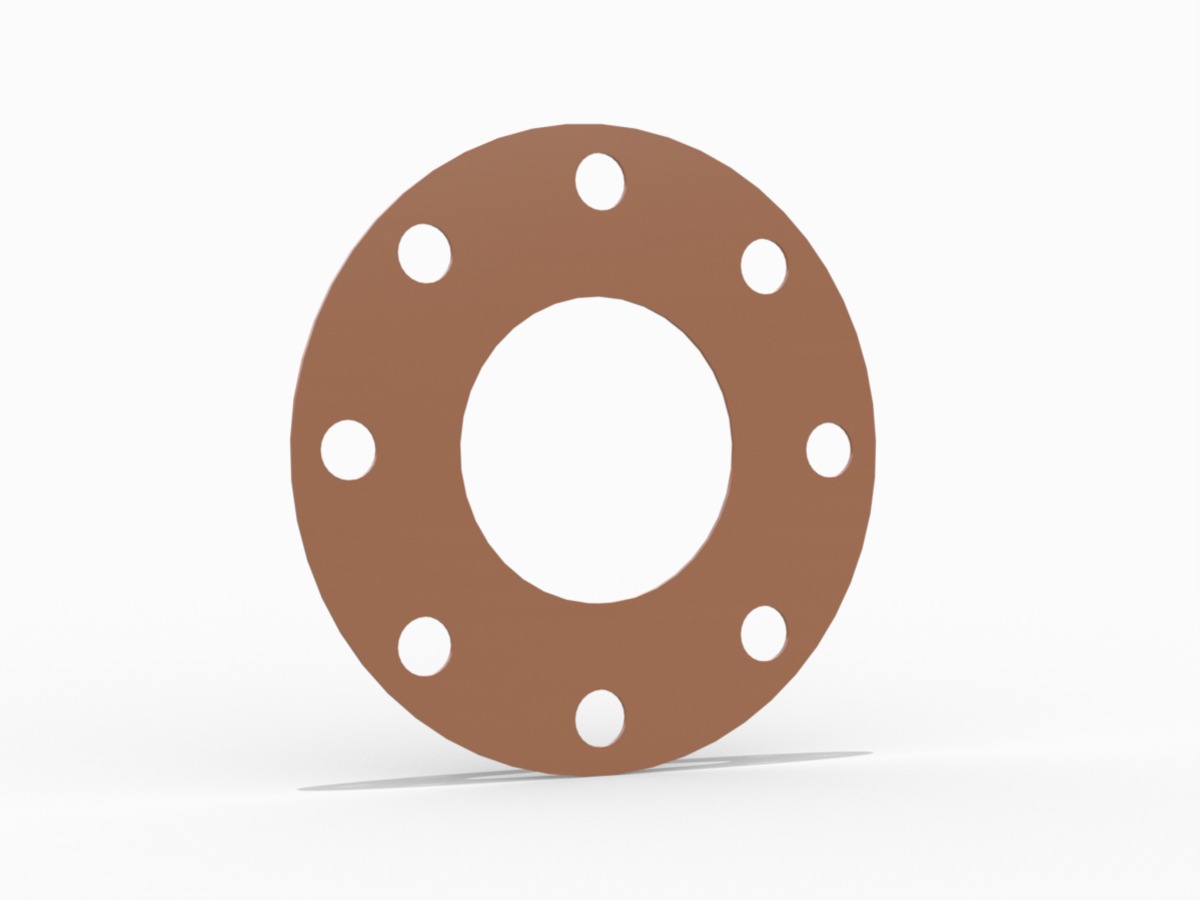

GYLON® Style 3502 Full Face Gasket, PTFE with Silica, 2 1/2 Inch ASME B16.5 Class 300, 0.063 Inch Thick, 8 Bolt Holes Clean and Bag for O2 Service

37134-4294
GYLON® Style 3502 Full Face Gasket, PTFE with Silica, 2 1/2 Inch ASME B16.5 Class 300, 0.063 Inch Thick, 8 Bolt Holes Clean and Bag for O2 Service
  • Shipping Weight: 0.191 lbs
  • Gasket Type: Full Face
  • Style/Model: Style 3502
  • Pipe Standard and Class: ASME B16.5 Class 300
  • Compliances/Standards: ADI/TSE Free, FDA Compliant, Oxygen Service, REACH Compliant, RoHS Compliant
  • Nominal Pipe Size Fraction (Inch): 2 1/2
  • Thickness (inch): 0.063
  • Composition: PTFE with Silica
  • Temperature Range (F): -450°F - 500°F
  • Temperature Range (C): -268°C - 260°C
  • Pressure Max (psi): 1200
  • Pressure Max (bar): 83
  • Bolt Circle Diameter (Inch): 5.875
  • Bolt Circle Diameter (mm): 149.23
  • Bolt Hole Diameter (Inch): 0.875
  • Bolt Hole Diameter (mm): 22.23
  • Bolt Hole Quantity: 8
  • Brand: GYLON®
  • Branding: Unbranded
  • Color: Fawn
  • Compliances: FDA Compliant, REACH Compliant, RoHS Compliant, ADI/TSE Free, Oxygen Service
  • Flange Standards/Pressure Class: ASME B16.5 Class 300
  • Min Temperature (C): -268
  • Min Temperature (F): -450
  • Nominal Pipe Size (inch): 2.500
  • Nominal Pipe Size DN (mm): 65.0
  • Pressure Class: 300
  • Primary Nominal Thickness: 5/8
  • Rubber Material: PTFE
  • Rubber Material Abbreviation: PTFE
  • Sort Priority: 510
  • UPC Code: 191074225373
  • Primary Dimensional Unit of Measure: Imperial
  • Thickness (mm): 1.60
  • Inside Diameter (Inch): 2.875
  • Inside Diameter (mm): 73.03
  • Outside Diameter (inch): 7.500
  • Outside Diameter (mm): 190.50
  • Overview

Industries Served:

  • Chemical Processing
  • Food and Beverage
  • Mining
  • Pharmaceutical
  • Primary Metals
  • Water and Wastewater
  • Pulp and Paper
  • Power Generation
  • Oil and Gas
  • Nuclear
