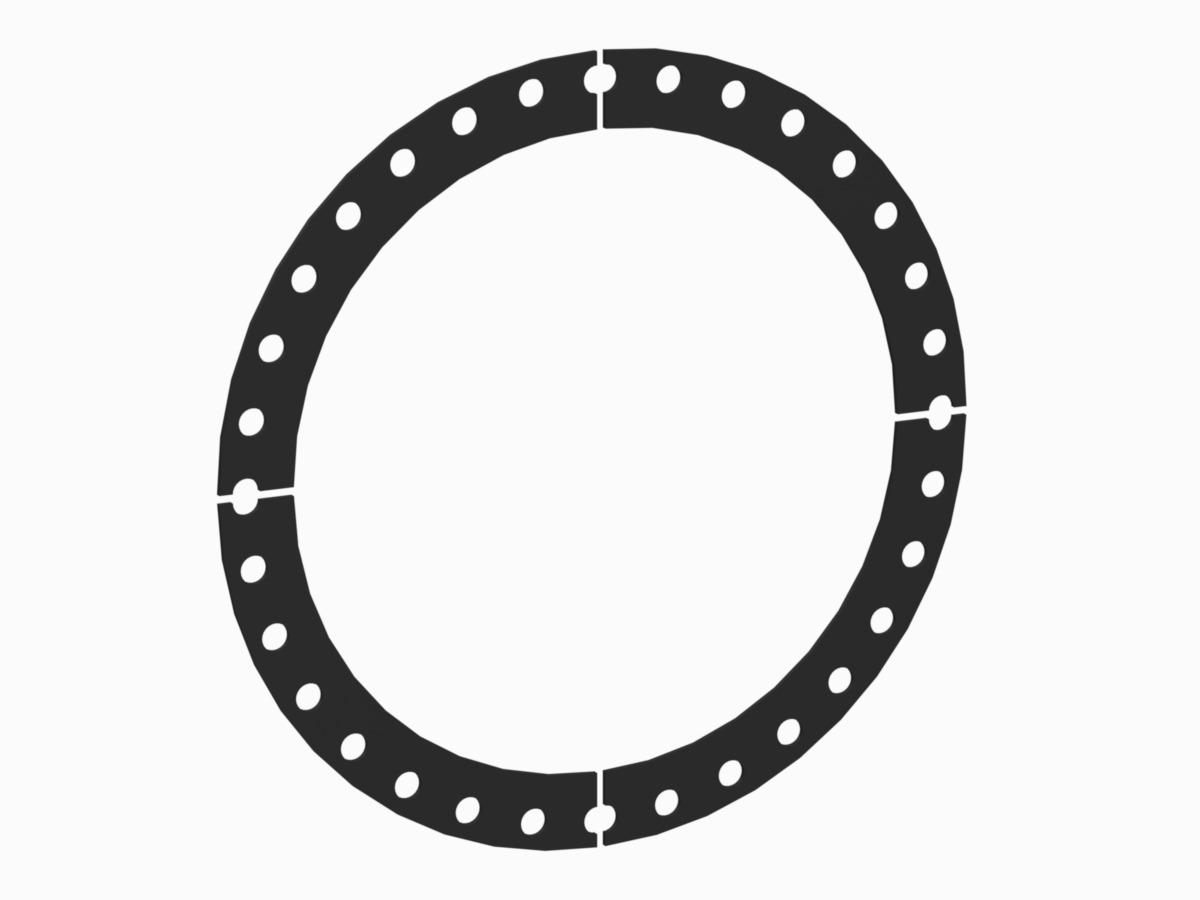

High Pressure Retaining Ring, Painted A-36 Carbon Steel, for 38.000 inch Inside Diameter Expansion Joint, ASME Class 125/150 A
99901-3800
- Shipping Weight: 44.8 lbs
- Style/Model: Retaining Rings
- Material: A-36 Carbon Steel
- Coating: Painted
- High Pressure: Yes
- Inside Diameter (Inch): 38
- Inside Diameter (mm): 965.20
- ADI/TSE Free: No
- API 589 Compliant: No
- API607Compliant: No
- API622Compliant: No
- Bolt Circle Diameter (Inch): 45.250
- Bolt Circle Diameter (mm): 1149.35
- Bolt Circle Diameter Fraction (Inch): 45 1/4
- Bolt Hole Diameter (Inch): 1.625
- Bolt Hole Diameter (mm): 41.28
- Bolt Hole Diameter Fraction (Inch): 1 5/8
- Bolt Hole Option: Standard Bolt Holes
- Bolt Hole Quantity: 32
- DFARS Compliant: No
- Drill Pattern: ASME Class 125/150 A
- FDA Compliant: No
- Fire Safe API 6FB: No
- Inside Diameter Fraction (Inch): 38.000
- KTW Compliant: No
- NSF® 61 Certified: No
- Number of Segments: 4
- Oxygen Service: No
- REACH Compliant: No
- RoHS Compliant: No
- UPC Code: 191074173643
- USDA Approved: No
- USP VI 661 Compliant: No
- USP VI 87 Compliant: No
- USP VI 88 Compliant: No
- Primary Dimensional Unit of Measure: Imperial
- Outside Diameter Fraction (Inch): 48 3/4
- Outside Diameter (inch): 48.750
- Outside Diameter (mm): 1238.25
