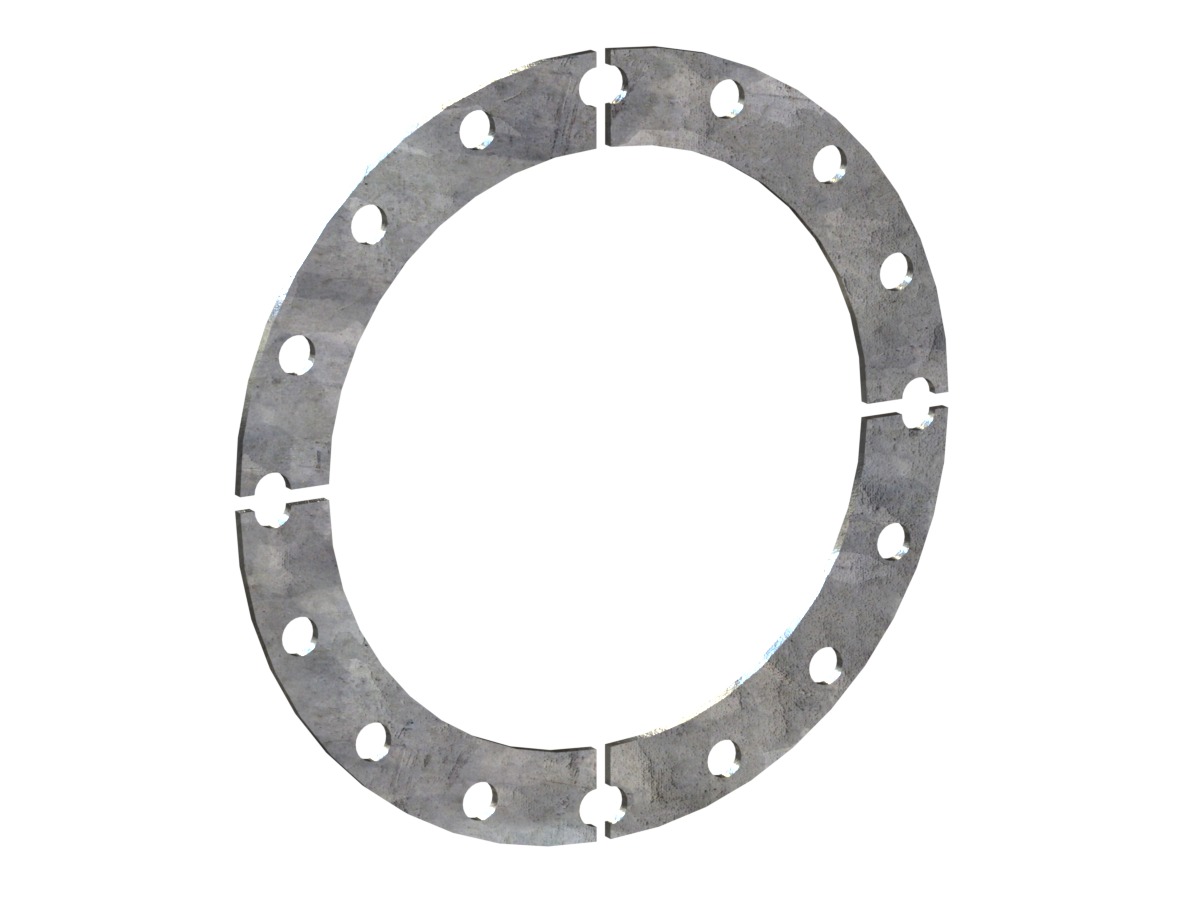

High Pressure Retaining Ring, Galvanized A-36 Carbon Steel, for 18.000 inch Inside Diameter Expansion Joint, ASME Class 125/150 A
99911-1800
- Shipping Weight: 15.2 lbs
- Style/Model: Retaining Rings
- Material: A-36 Carbon Steel
- Coating: Galvanized
- High Pressure: Yes
- Inside Diameter (Inch): 18
- Inside Diameter (mm): 457.20
- Bolt Circle Diameter (Inch): 22.750
- Bolt Circle Diameter (mm): 577.85
- Bolt Circle Diameter Fraction (Inch): 22 3/4
- Bolt Hole Diameter (Inch): 1.250
- Bolt Hole Diameter (mm): 31.75
- Bolt Hole Diameter Fraction (Inch): 1 1/4
- Bolt Hole Option: Standard Bolt Holes
- Bolt Hole Quantity: 16
- Drill Pattern: ASME Class 125/150 A
- Inside Diameter Fraction (Inch): 18.000
- Number of Segments: 4
- UPC Code: 191074197830
- Primary Dimensional Unit of Measure: Imperial
- Outside Diameter Fraction (Inch): 25
- Outside Diameter (inch): 25.000
- Outside Diameter (mm): 635.00
- zB7Jy4KdSNqr4lDXKzkvMA(Product Selection)
- KYABUzNjRkqsg9lpWVb4rQ(Technical Documents)
- fcd0c85f-5679-448f-99b9-fe3800fb674c(Katalog)
- fb0730c7-f04f-45d4-a7bc-7c336f6b2b2d(Product Selection)
- fafa04cb-843a-4e94-a63a-b6a2be560bf1(Certifications & Compliances)
- dbe60d97-dfdb-47a2-8a86-9039a73151e7(Data Sheet)
- cfc92ebe-a8ee-4a21-acf9-c78cf0e4467b(Product Selection)
- bec8e254-58bb-421d-a525-17d591c1a6d2(Product Selection)
- a8e44295-7a58-498b-95ed-b42fcb3f68ec(Certifications & Compliances)
- a65858f5-4ecb-45b2-b635-4ada09d230a3(Product Selection)
- 7b8d0123-331b-4bd7-871f-a1f08a83de5c(Certifications & Compliances)
- Overview
Features and Benefits:
- For exclusive use with Garlock expansion joints.
