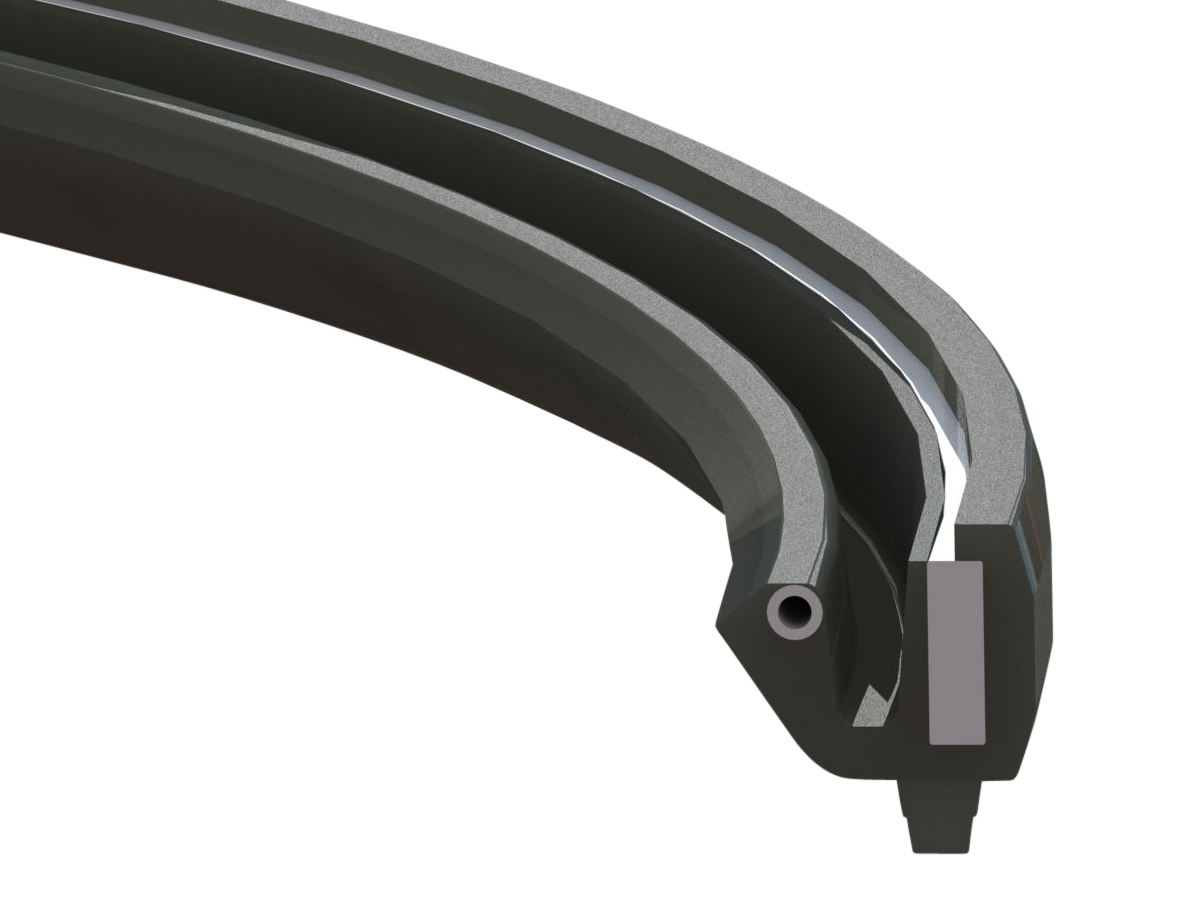

Garlock KLOZURE® Model 88 Oil Seal, MILL-RIGHT N, 15.500 in Shaft, 17.500 in Bore, 0.813 in Width, 0.250 in Spacers, CRS Insert

26088-4163
Garlock KLOZURE® Model 88 Oil Seal, MILL-RIGHT N, 15.500 in Shaft, 17.500 in Bore, 0.813 in Width, 0.250 in Spacers, CRS Insert
  • Shipping Weight: 3.36 lbs
  • Brand: KLOZURE®
  • Style/Model: Model 88
  • Shaft Size (inch): 15.500
  • Shaft Size (mm): 393.70
  • Bore Size (inch): 17.500
  • Bore Size (mm): 444.50
  • Width (inch): 0.813
  • Width (mm): 20.65
  • Lip Material: MILL-RIGHT N
  • Split or Solid: Solid
  • Case Material: None
  • Configuration Type (Seals): Single Lip
  • Lip Base Material Abbreviation: NBR
  • Lip Base Material Name: Nitrile
  • Max Temperature (C): 93
  • Max Temperature (F): 200
  • Spacer Size (inch): 0.250
  • Spacer Size (mm): 6.40
  • Spacers Exist: Yes
  • Spring Material: CRS
  • Standard/Special: Standard
  • UPC Code: 717744071110
  • Pressure Max (bar): 0.48
  • Pressure Max (psi): 7
  • Primary Dimensional Unit of Measure: Imperial
  • Max Shaft Surface Speed (meter/sec): 25.4
  • Max Shaft Surface Speed (feet/min): 5,000

The Model 88 series provides excellent sealing capabilities with a rubber O.D. to prevent any damage to the housing.

  • Overview

Features and Benefits:

  • Metal reinforced rubber OD
  • Aggressive shaft to bore misalignment capability
  • Reinforced rubber OD
  • Cover plate required for both split and solid deisgns
  • Wear resistant and low friction

Typical Applications:

  • Severe Service Large Oil Seal
