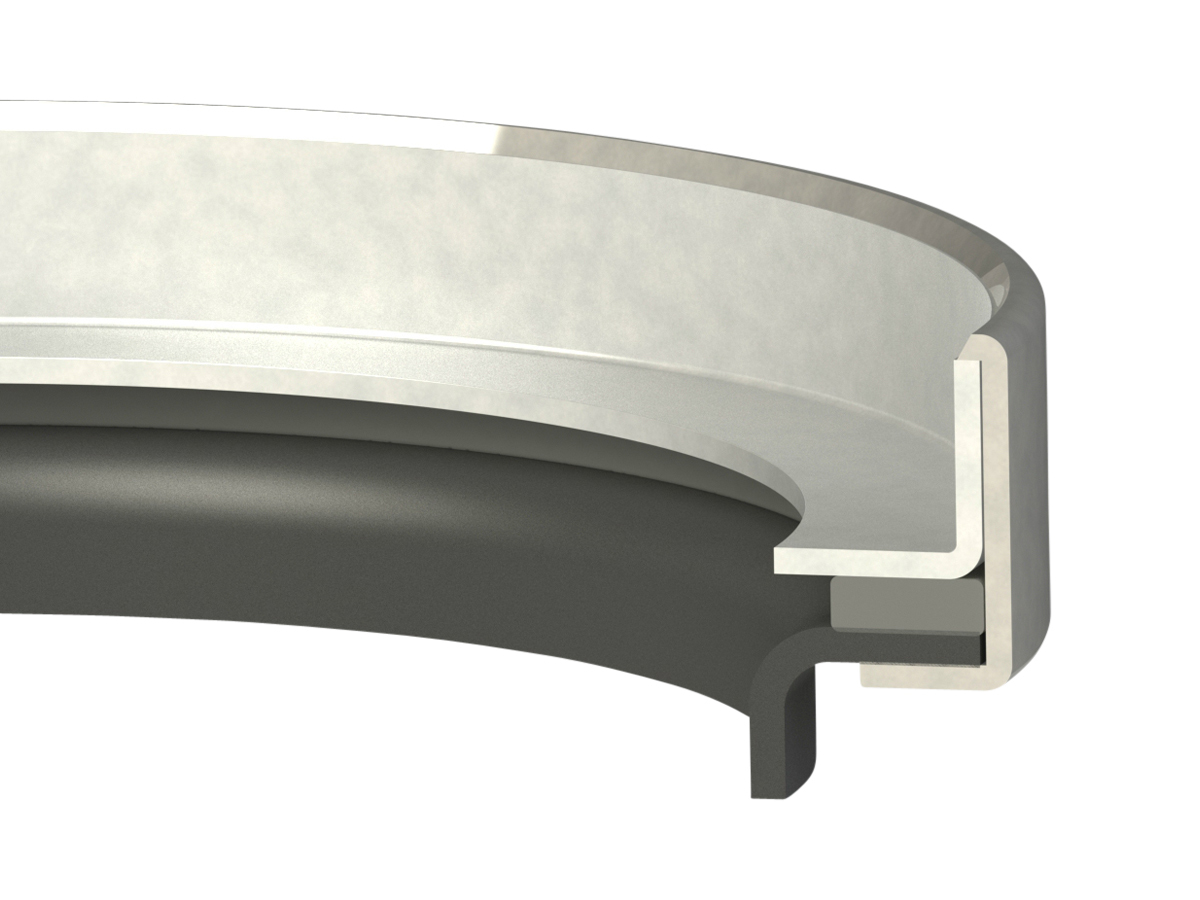

Model 61R Oil Seal, GYLON, 0.670 inch Shaft, 1.103 inch Bore, 0.315 inch Width, Reverse Lip

24064-1754
Model 61R Oil Seal, GYLON, 0.670 inch Shaft, 1.103 inch Bore, 0.315 inch Width, Reverse Lip
  • Shipping Weight: 0.05 lbs
  • Style/Model: Model 61R
  • Shaft Size (inch): 0.670
  • Shaft Size (mm): 17.02
  • Bore Size (inch): 1.103
  • Bore Size (mm): 28.02
  • Width (inch): 0.315
  • Width (mm): 8.00
  • Lip Material: GYLON
  • Split or Solid: Solid
  • Case Material: 316SS
  • Configuration Type (Seals): Reverse Lip
  • ADI/TSE Free: false
  • API 589 Compliant: false
  • API607Compliant: false
  • API622Compliant: false
  • DFARS Compliant: false
  • Fire Safe API 6FB: false
  • KTW Compliant: false
  • Lip Base Material Abbreviation: PTFE
  • Lip Base Material Name: PTFE
  • Max Temperature (C): 204
  • Max Temperature (F): 400
  • Misalignment Tolerance (inch): 0.005 in @ 2,000 ft/min
  • Misalignment Tolerance (mm): 0.13 mm @ 10.2 m/s
  • NSF® 61 Certified: false
  • REACH Compliant: false
  • RoHS Compliant: false
  • Spacers Exist: false
  • Standard/Special: Standard
  • UPC Code: 717744627003
  • USDA Approved: false
  • USP VI 661 Compliant: false
  • USP VI 87 Compliant: false
  • USP VI 88 Compliant: false
  • Primary Dimensional Unit of Measure: Imperial
  • Pressure Max (psi): 150
  • Pressure Max (bar): 10.34
  • Max Shaft Surface Speed (meter/sec): 10.2
  • Max Shaft Surface Speed (feet/min): 2,000
