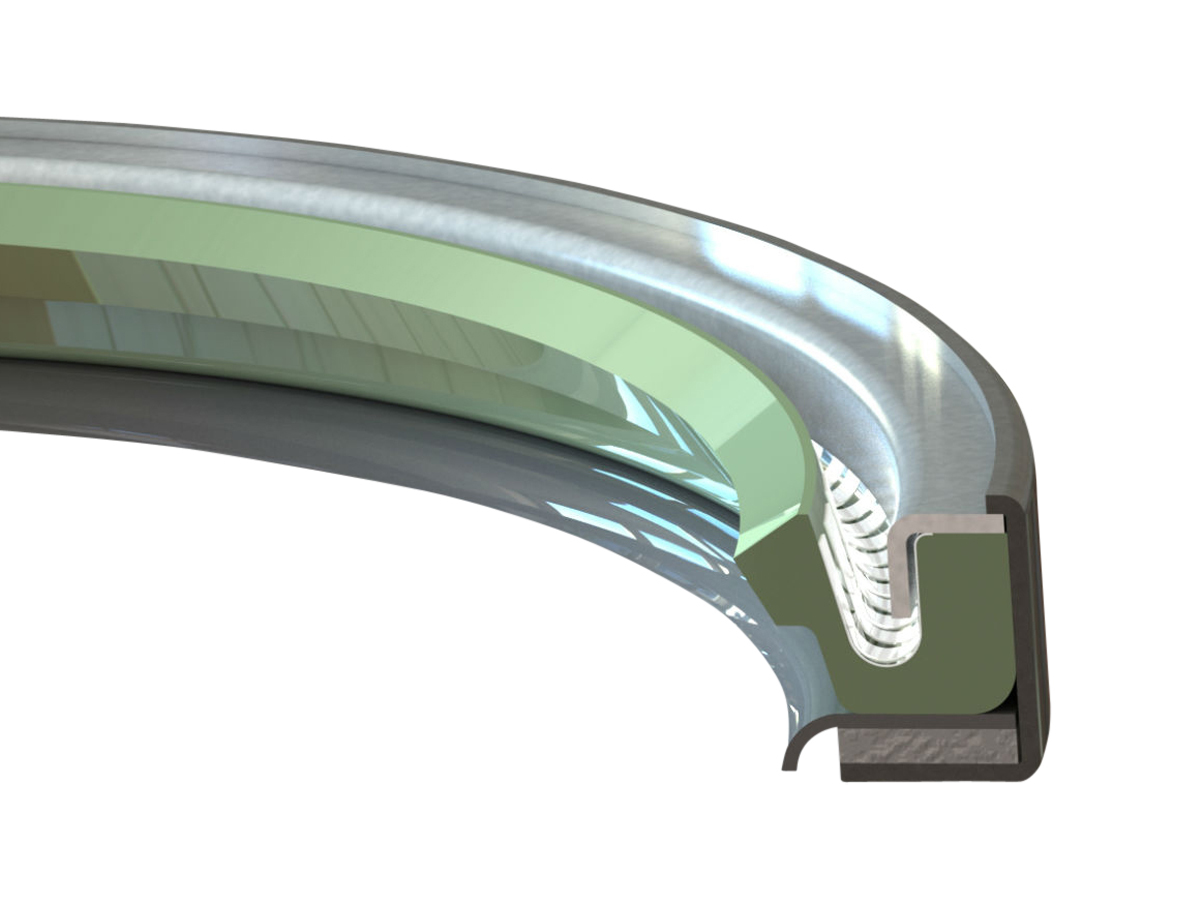

Model 59G1 Oil Seal, MILL-RIGHT V, 11.417 inch Shaft, 12.994 inch Bore, 0.875 inch Width, GYLON Excluder Lip
24752-3048
- Shipping Weight: 4.199 lbs
- Style/Model: Model 59G1
- Shaft Size (inch): 11.417
- Shaft Size (mm): 289.99
- Bore Size (inch): 12.994
- Bore Size (mm): 330.05
- Width (inch): 0.875
- Width (mm): 22.23
- Lip Material: MILL-RIGHT V
- Split or Solid: Solid
- Case Material: CRS
- Configuration Type (Seals): Dual Lip, GYLON Excluder Lip
- ADI/TSE Free: false
- API 589 Compliant: false
- API607Compliant: false
- API622Compliant: false
- DFARS Compliant: false
- Fire Safe API 6FB: false
- KTW Compliant: false
- Lip Base Material Abbreviation: FKM
- Lip Base Material Name: Fluoroelastomer
- Max Temperature (C): 204
- Max Temperature (F): 400
- Min Temperature (C): -30
- Min Temperature (F): -22
- Misalignment Tolerance (inch): 0.010 in @ 2,500 ft/min
- Misalignment Tolerance (mm): 0.25 mm @ 12.7 m/s
- NSF® 61 Certified: false
- REACH Compliant: false
- RoHS Compliant: false
- Spacers Exist: false
- Spring Material: 302SS
- Standard/Special: Standard
- UPC Code: 191074097826
- USDA Approved: false
- USP VI 661 Compliant: false
- USP VI 87 Compliant: false
- USP VI 88 Compliant: false
- Pressure Max (bar): 0.48
- Pressure Max (psi): 7
- Primary Dimensional Unit of Measure: Imperial
- Max Shaft Surface Speed (meter/sec): 12.7
- Max Shaft Surface Speed (feet/min): 2,500
The Model 59G1 is the perfect seal for your aggressive applications with contamination present. The dual lip design allows for premium lubrication retention in junction with the durability of the GYLON® dust lip.
- 总览
Features and Benefits:
- GYLON® excluder lip for non-lubricated external conditions or corrosive external conditions
Typical Applications:
- Aggressive applications with contamination present
Interchange:
,Industries Served:
- Primary Metals
- General Industrial
