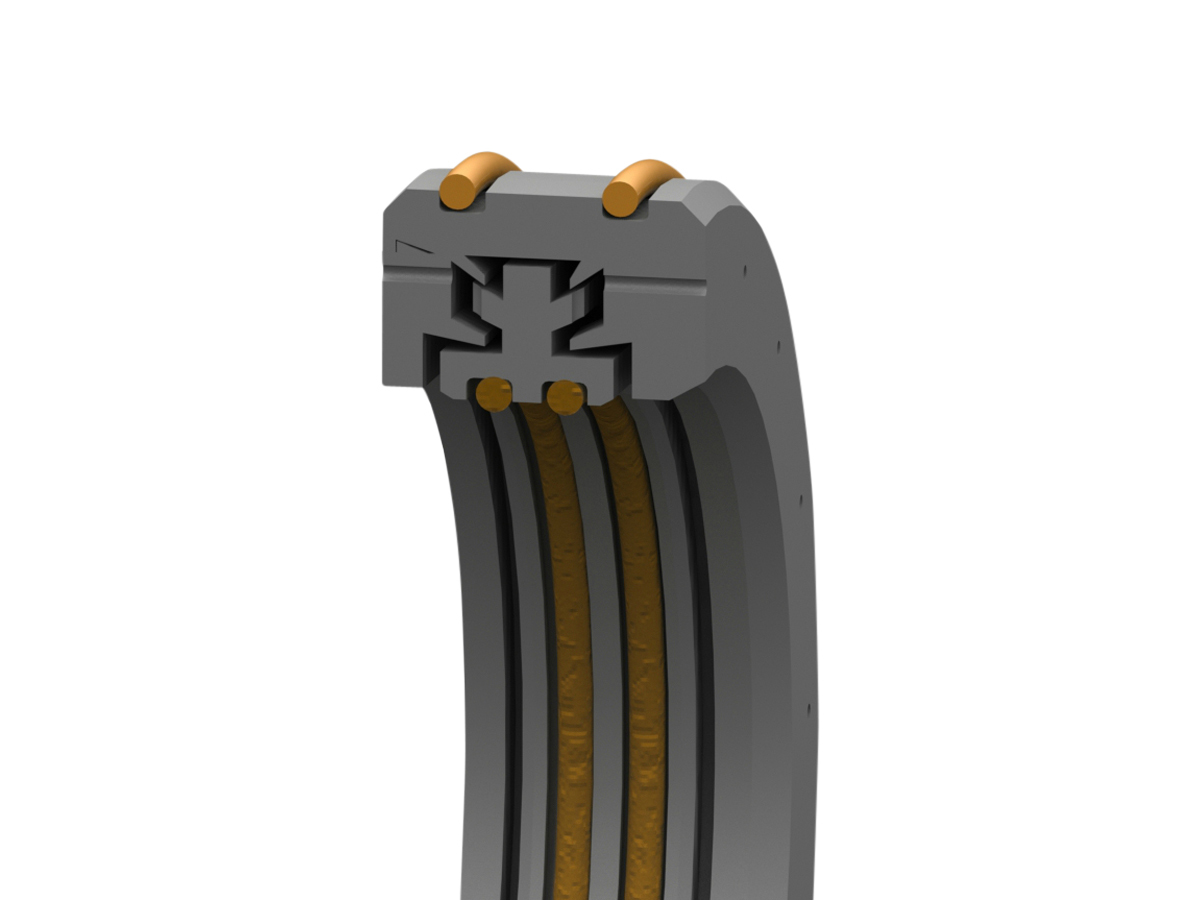

Garlock KLOZURE® EQUALIZER™ Bearing Isolator/Labyrinth Seal, Flangeless, Standard, Graphite Filled PTFE, 7.000 inch Shaft, 8.500 inch Bore, 0.626 inch Width

24801-3500
Garlock KLOZURE® EQUALIZER™ Bearing Isolator/Labyrinth Seal, Flangeless, Standard, Graphite Filled PTFE, 7.000 inch Shaft, 8.500 inch Bore, 0.626 inch Width
  • Shipping Weight: 1.5 lbs
  • Style/Model: EQUALIZER
  • Split or Solid: Solid
  • Shaft Size (inch): 7.000
  • Shaft Size (mm): 177.80
  • Bore Size (inch): 8.500
  • Bore Size (mm): 215.90
  • Width (inch): 0.626
  • Width (mm): 15.90
  • Stator Material: Graphite Filled PTFE
  • Rotor Material: Graphite Filled PTFE
  • Material: Graphite Filled PTFE
  • Configuration Type (Isolators): Flangeless
  • Axial Motion (inch): +/-0.015
  • Axial Motion (mm): +/-0.38
  • Brand: KLOZURE® EQUALIZER™
  • Flange Exists: No
  • Flange Length (inch): 0.000
  • Flange Length (mm): 0.00
  • Max Temperature (C): 204
  • Max Temperature (F): 400
  • Min Temperature (C): -30
  • Min Temperature (F): -22
  • Misalignment Tolerance (inch): +/-0.015
  • Misalignment Tolerance (mm): +/-0.38
  • ORing Material: FKM
  • Standard/Special: Standard
  • UPC Code: 717744777159
  • Primary Dimensional Unit of Measure: Imperial
  • Pressure Max (psi): Ambient
  • Pressure Max (bar): Ambient
  • Max Shaft Surface Speed (meter/sec): 22.9
  • Max Shaft Surface Speed (feet/min): 4,500
  • Overview

Features and Benefits:

  • Ideal for abrasive environments.
